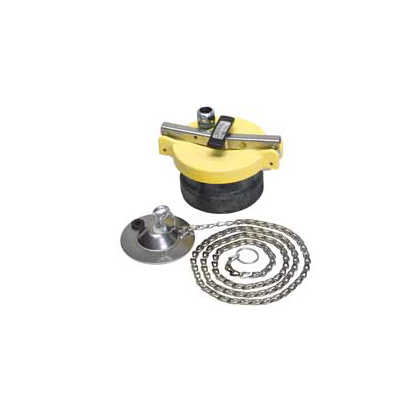

Probe mounting assembly

INCON Level gauge probe mounting assembly TSP-K4A is used to install the underground tank TSP-LL2 level probe. Designed to allow the probe to be suspended over a 4 "support riser, this installation ensures that the probe provides accurate fluid level information, tank containment meets specification requirements, and provides excellent protection for the probe.

Category:

Fuel Management Systems

Service Station Equipment

Key Word:

INCON

探棒安装组件

Product Accessories:


Description



INCON probe mounting kit



The TSP-K4A probe mounting kit is used to install the underground tank TSP-LL2 level probe. Designed to allow the probe to be suspended on a 4" support riser, this installation ensures that the probe provides accurate level information, keeps the tank closed to specification, and provides excellent protection for the probe. The TSP-K4A mounting kit makes it easy to install the TSP-LL2 probe properly and safely. The TSP-K4A actually hangs the probe from a riser on top. The assembly is designed so that the probe and cable do not twist when installed, thus guaranteeing that the cable is sealed and not binding. It also makes it easy to check the probe when necessary. It is designed to meet the requirements of almost any underground tank level probe installation. The same effect is available for FRP tanks and steel tanks, and can be adjusted to accommodate almost any underground depth of the tank.

  • Ordering Information




Product model Name description
 TSP-K2A The mounting kit for magnetostrictive probes is suitable for 2"; (50.8 mm) thick support riser
 TSP-K4A The mounting kit for magnetostrictive probes is suitable for 4" (101.6 mm) thick support risers
 TSP-K4B The mounting assembly for magnetostrictive probes is suitable for 4" (101.6 mm) thick support risers with BSP threads
 TSP-K4AS Mounting assembly for magnetostrictive probes for 4" (101.6 mm) thick support risers (made of #316 stainless steel)
 TSP-LPGK LPG liquefied gas probe mounting assembly


Probe mounting accessories

Product model Name description
 TSP-UVPK UV Protection Components - Protect the electrical properties of the probe when it is installed in an above-ground tank
 TSP-DB1 Landfill twisted joint assembly
 STP-DB10 10 sets of direct landfill twisted joint assemblies
