STP (VL) 4 "Fixed-speed Submersible Oil Pump
STP 4 "fixed speed telescopic rod submersible oil pump Marketers who are concerned about fuel time, efficiency, maintainability, reliability and overall quality have found an easy option to specify a FE Petro™ branded STP Submersible pump. STP submersible oil pump has reliable and safe operation performance. That's why thousands of gas station owners around the world trust FE Petro™ STP submersible Pumps and Franklin Motors, which have kept their businesses running for more than 25 years. With the same quality flow rate and long-term reliability, the FE Petro™ STP submersible pump can operate consistently and easily for years to come.
Category:
Service Station Equipment
Submersible Pumping
Key Word:
STP submersible pump
Product Accessories:
Description
STP-VL 4 inch fixed speed telescopic rod submersible pump
Marketers who are concerned about refueling time, efficiency, maintainability, reliability and overall quality find an easy option to specify FE Petro™ brand STP submersible pumps. STP submersible pumps provide reliable and safe operation. That's why thousands of gas station owners around the world trust FE Petro™ STP submersible pumps and Franklin motors to keep their businesses running for more than 25 years. The quality of best-in-class flow and long-term reliability ensures that the FE Petro™ STP submersible pump will always operate smoothly and easily refuel customers for many years to come.
Product advantages
|
Active degassingFE Petro™ STP submersible pumps come standard with active air elimination, which continuously eliminates air through the pumphead height while the pump is running, ensuring that air does not enter the oil line. Each submersible pump includes a tank return path with a check valve to provide active air loss. |
Safe and easy maintenanceFE Petro™ STP submersible pumps have a wire bridge to actively disconnect the motor power during service work. Only one bolt needs to be loosened to disconnect the motor connection and not allow dangerous oil and gas leaks into the manhole well. |
![]() |
|
|
Manual pressure reliefAs a standard Petro™ feature, it provides an exhaust screw that relieves line pressure to zero when necessary. By adjusting this screw, the oil is returned to the tank, and the line pressure is reduced to zero. This reduces the amount of oil discharged into manhole wells or dispenser sumps during maintenance services, further protecting service technicians and the environment. |
Simple overhaul serviceWhen servicing the STP submersible pump, if it is time to pump the pump out of the tank, it is easy to unscrew only three bolts. There is no need to disassemble the siphon system or mechanical line leak detector. |
|
|
Variable-length telescopic rodThe VL2 submersible pump is suitable for 94% of all known tank diameters with a tank buried depth. The VL1 and VL3 models are designed to meet the needs of shorter or longer lengths in addition to this. Telescopic connections are an important feature of FE Petro™ STP submersible pumps. The length of the pump can be measured and set by doing a simple measurement without affecting the UL list. |
Reliable one-way check valveSTP submersible pumps use certified FE Petro™ in-line check valves. This 70 mm diameter valve reduces pressure loss at high flow rates for faster refueling. FE Petro™ line check valves are available in a variety of configurations to best suit your pipeline leakage application. |
|
|
Durable, Franklin submersible pumpFE Petro™ STP submersible pumps are powered by legendary Franklin motors and offer long-life performance. Franklin electric submersible pumps offer increased uptime and a proven track record in the refueling industry spans more than four decades. They are characterized by a larger flow rate of similar products, and their reliability has a long history. |
Product specifications
Power requirements
The 1.5 hp fixed-speed pump model requires input power: single phase, 208-230 VAC, 50 Hertz
The use of the 1.5 hp fixed speed pump requires a start-up and operation capacitor and an internal current-limiting resistor with a capacitance of 370 V, 15 μF
Both the STP-SCI single-phase intelligent controller and the STP-CBBS single-phase control box can be used for power control of 1.5 hp fixed-speed pumps
Upper limit motor current: 11 A
Pump motor
1.5 hp fixed speed, 3450 rpm, multistage centrifugal pump motor, with internal automatic overheating overload protection
Available in standard pressure (2-stage) models with upper limit flow rate = 379 l/min and upper pressure = 34 psi
Available in high pressure (H200, class 3-) model with upper flow rate = 246 l/min and upper pressure = 46 psi

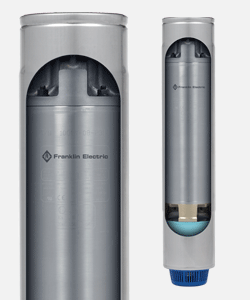

MagShell™ motors with enlarged housings increase cross-sectional flow by 45%.
Liquid adaptability
Upper liquid viscosity: 70 SSU @ 15°C (60°F)
Standard STP (Non-Ethanol Gasoline) models are listed by UL and cUL for use in fuel blends containing up to 15% ethanol or methanol, and 20% methyl tert-butyl ether, 20% ethyl tert-butyl ether, or 17% methyl tert-butyl ether gasoline
STPAG (Ethanol Gasoline) models are listed by UL and cUL as suitable for blending fuels containing up to 100% ethanol or methanol, and 20% methyl tert-butyl ether, 20% ethyl tert-butyl ether, or 17% methyl tert-butyl ether gasoline
The 1.5 hp fixed speed pump model can also be used for diesel, fuel, kerosene, jet gasoline, and non-gel-cast jet fuel
所有湿弹性体是由一个高品位的碳氟化合物制作的
标准特性
1.5 匹定速泵拥有可变长度和固定长度可选
Check valve: 2.75" (70cm) diameter carbon-fluoroelastomer seal constructed aluminum housing and steel support gasket
Pressure relief valves: There are four pressure relief settings for check valves. Standard models are pressure-relief at 40 psi and reset above 35 psi
Siphon function: Each submersible pump provides a venturi siphon. Siphon check valves and slave siphon interface accessories purchased separately
Air Exclusion Device: Each submersible pump contains a tank return pipe, plus a one-way check valve, which constitutes an active air exclusion function
Power cut-off device: An electronic cut-off device that needs to be actively disconnected when refueling (emergency maintenance).
authentication
The 1.5 hp fixed-speed pump models are UL and cUL certified
Quality certificate
The Franklin Gas Station Systems plant is ISO 9001 certified
